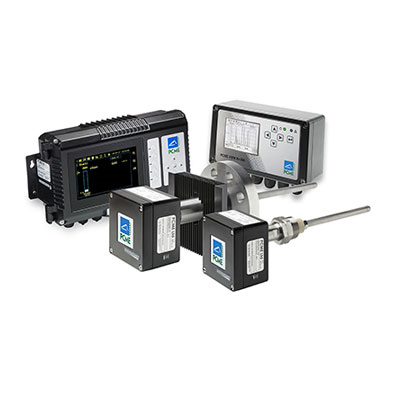

Electrodynamic Multisensor Dust Monitor View 800

Multi-Sensor Dust Monitor certified to category 1 under ATEX / IECEx designed for indicative emissions trending and measurement in challenging hazardous zone

Advanced Probe Electrification technology, perfectly adapted for particulate monitoring after bag filters, cartridge filters, cyclones and process driers, where regulatory approvals are not necessary

FEATURES & BENEFITS

Reliable measurement of leaking and broken bags in dust collectors
Senor configured remotly via controller
Automatic sensor drift checks (zero and span)
Automatic probe check (Insulator Short-Circuit Check) for improved data integrity
Reduces filter maintenance intervals, process down-time and filter costs

MAIN APPLICATIONS

Stacks after bag filters, cartridge filters, cyclones
Variable velocities within range 4-30 m/s (typical bagfilter velocity ranges), constant velocity required outside this range
Explosive atmosphere zones 0, 1, 2, 20, 21 and 22

Typical Applications:

Minerals (eg Coal Gasification)
Petrochemicals (eg Plastics manufacture)
Power (eg Biomas)

TECHNICAL SPECIFICATIONS
Measured parameters	Dust
Technology	ElectroDynamic™ Advanced Probe Electrification
Measurement/Monitoring capability	0-500 mg/m³*
Stack/Duct diameter suitability	up to 6m
Flue gas temperature	up to 250°C
Baghouse	YES
Cartridge Filter	YES
Ceramic Filter	/
Coalescent Filter	/
Cyclone	YES
Electrostatic Precipitator (ESP)	/
Wet Electrostatic Precipitator (WESP)	/
Wet Scrubber	/
Sensor variants	Stainless Steel
QA checks	N/A

*Application dependant

TECHNICAL DATA
Monitoring capability	0-500 mg/m³
Sensor Variants	316 Stainless Steel (standard)
Stack Temperature Ranges	0-250°C
Pressure Rating	< 2Bar
On-board data logging	User configurable Long term, Short term or Pulse logging
Outputs	RS232, RS485 (Modbus), Ethernet Digital Alarm and 4/20mA (number of outputs dependant on controller type)

APPROVALS & CERTIFICATIONS

Ex Zone 0, 1, 2
US EPA MACT Compliant BLD
